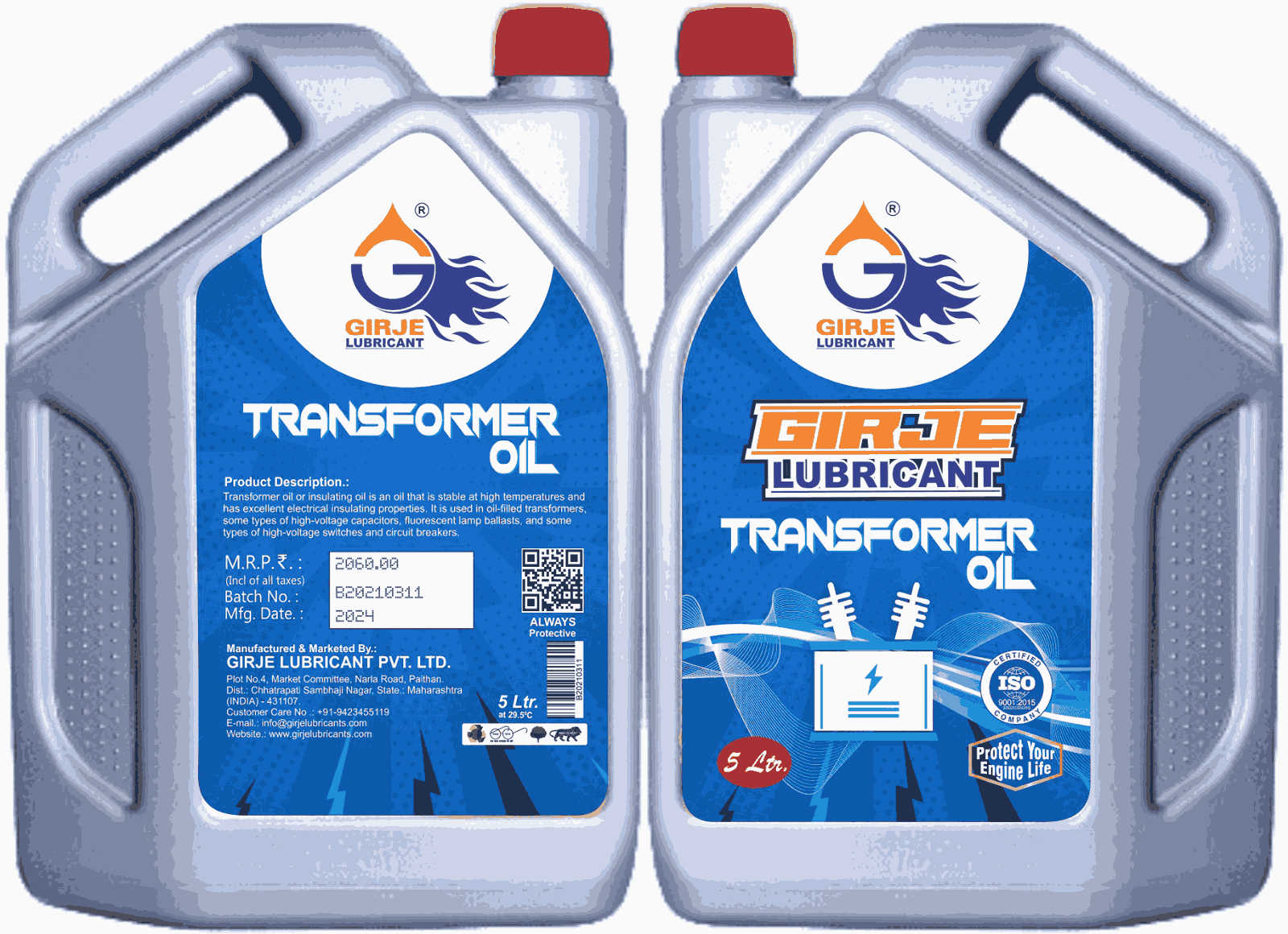

GIRJE LUBE

TRANSFORMER

TRANSFORMER OIL



DESCRIPTION & APPLICATION

GIRJE Lubes Transformer oils are widely used in Transformers, oil immersed circuit breakers and switchgears, GIRJE Lubes Transformers oils are widely used in special transformers designed to operate of elevated to temperatures and in low maintenance/maintenance –free transformers designed to operate for longer periods.


PROPERTIES

  • Good dielectric properties resulting in minimum GIRJE loss.
  • Proven resistance to electrical stresses.
  • Low viscosity improves cooling.
  • High flash point resulting in low evaporation losses due to high thermal stability.

SPECIFICATION:
Appearance Clear, transparent & free from
suspended matter or sediment
Density @ 29.5 ºC, Min 0.829
Kinematic Viscosity, @ 27 ºC 14.33
Interfacial Tension, at 27 ºC, Min 0.50
Flash Point, Min 170
Pour Point, Max -14
Neutralization Value
a) Total Acidity, Max
b) Inorganic acidity / alkalinity
Nil
Nil
Corrosive Sulfur Non-Corrosive
Electric Strength (BDV)
a) New unfiltered oil, Min
b) After Filtration, Min 		76
Oxidation Stability
a) Neutralization Value after oxidation, Max
b) Total Sludge, after oxidation, Max
0.067
0.044
Presence of Oxidation inhibitor, % by weight 0.1
Water content, Max 9 ppm
a)Total Acidity, Max
b) Total Sludge Value, Max 		0.01
0.006
